(August 2017 - May 2018)

Team:

Sanket Bhilare

Sandeep Mistry

Joe taylor

Xiaorui Li

PARAMETRIC & GENERATIVE DESIGN & ANALYSIS OF PROSTHETIC, HELMET LINER, SHOE SOLE AND JET ENGINE BRACKET

NFL Helmet Liner

Shoe Sole

Jet Engine bracket

Prosthetic Liner

I have made novel designs on the basis of  computationally set parameters having  high impact strength and ergonomic fit for end users.

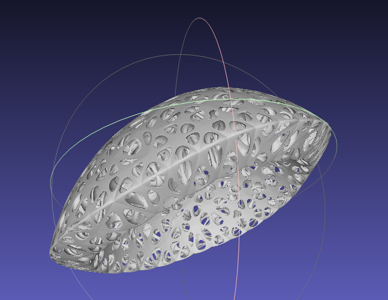

3D model of helmet liner with Tetrahedral (high stiffness) & Voronoi (less stiffness):

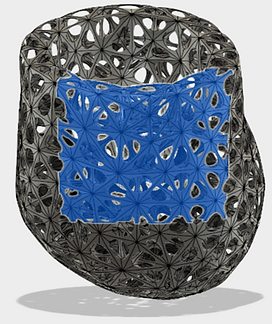

Assembly of leg, polygon model of liner and socket by reverse engineering it from a 3d scanned foot:

Sectioning the liner to 1/4th part to compute quickly and validate the strength through static analysis:
